MS SERIES

Pixel Pitch (mm) : 1.25 / 1.5625 / 1.95 / 2.5 / 2.604 / 2.976 /3.9
Cabinet Size (mm): 500x250 /750x250 / 1000x250 / 1000x500

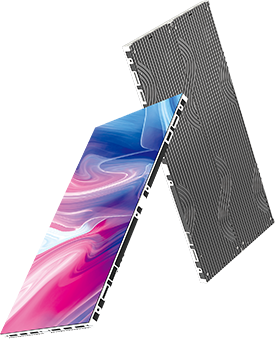

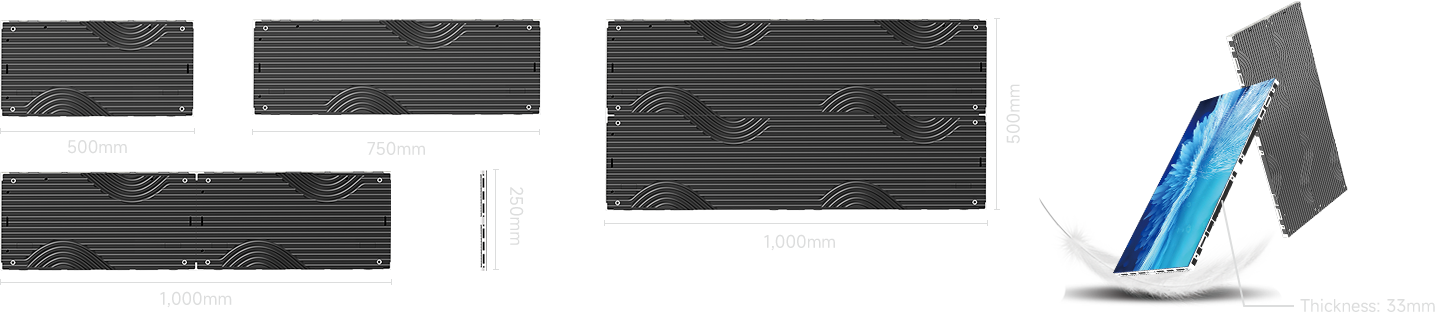

Ultra-Thin & Lightweight

The MS Series indoor LED display offers pixel pitches of 125, 1.5,625, 1.95, 2.5, 2.604, 2.76, and 3.91mm. Its die-cast aluminum inte-grated
cabinet is highly precise with a total thickness of only 33mm. Cabinet weights are 3.Okg for 500x250mm, 4.Okg for
750x250mm, 5.6kg for 1,000x250mm, and 10.5kg for 1,000x500mm, making installation effortless.

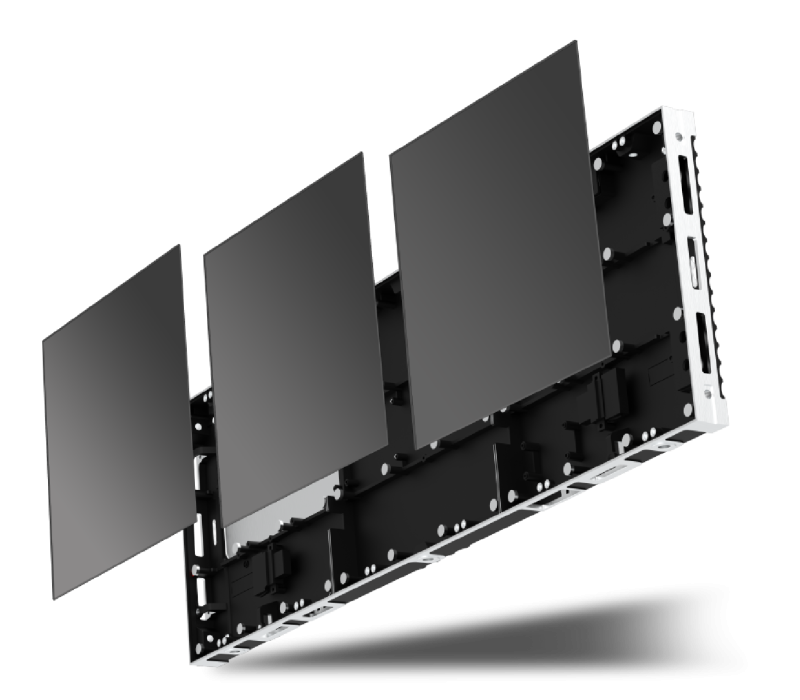

Front Maintenance

The MS Series allows quick front access for maintenance without removingthe entire cabinet, ensuringminimal downtime.

2

Superior Display Performance

Enjoy vibrant visuals with high grayscale, dazzling colors, and no scanning lines in photography. Features include a 160 viewing angle
3,840Hz high refresh rate, 10,000:1 contrast ratio, and 16-bit high grayscale for realistic and delicate display effects.

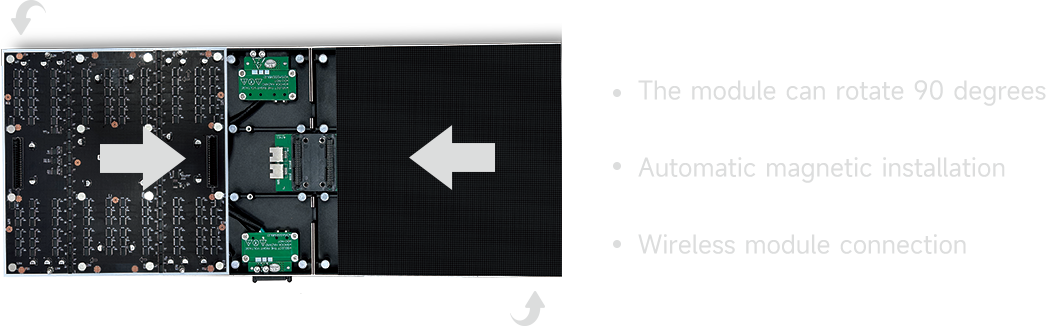

Innovative Module Design

Modules maintain consistent color and brightness even when rotated Hard connected to the cabinet with magnetic suction automatic
adsorption, they are secure, reliable, and can rotate 90 for flexible installation. Wireless module connection further simplifies setup.

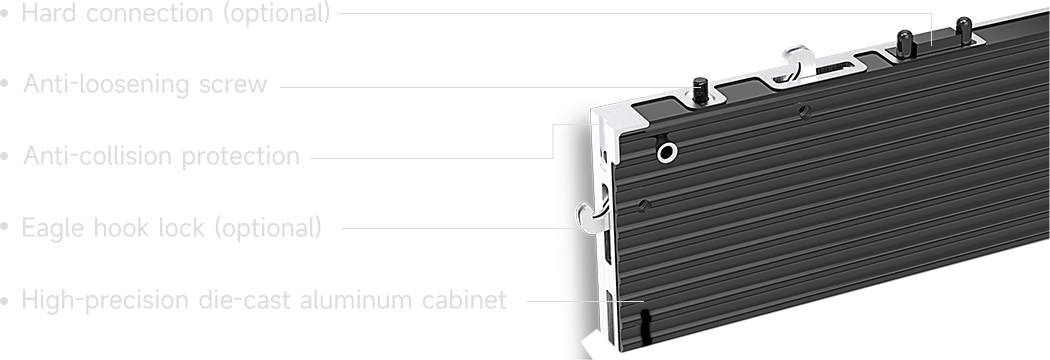

Smart Cabinet Structure

Integrated power and signal quick plug interface reduces internal wiring, speeding up installation. High-precision die-cast cabinets in-clude
positioning columns, eagle hook locks, and reinforcement ribs to ensure flatness and efficient assembly.

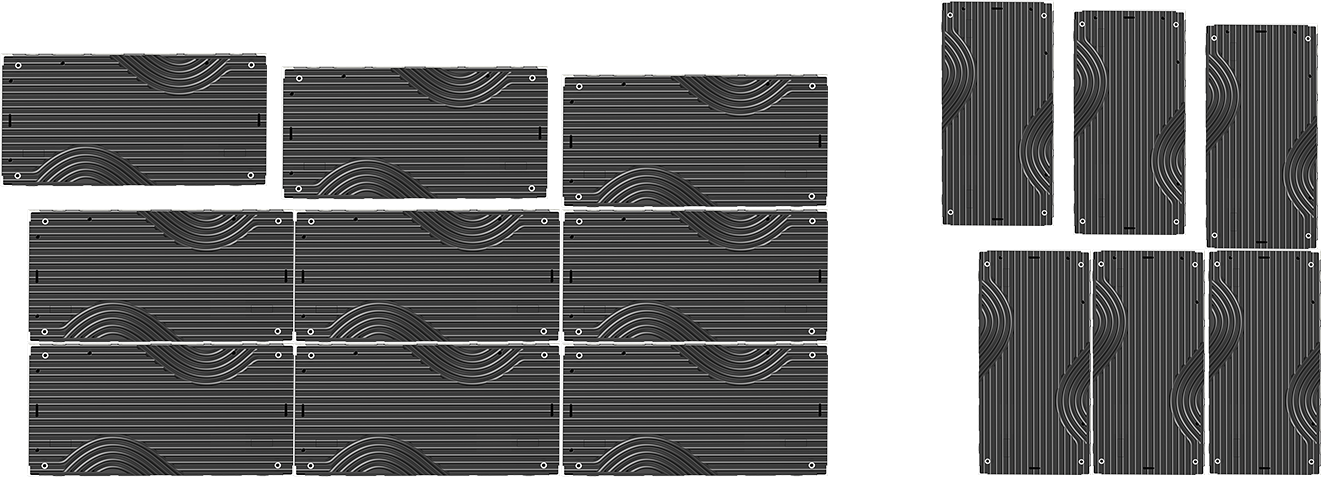

Flexible Free Splicing

Cabinets in sizes 500x250mm, 750x250mm, 1,000x250mm, and 1,000x500mm can be spliced horizontaly or verticaly, offering limit-less
possibilities for creative displays in any scenario.

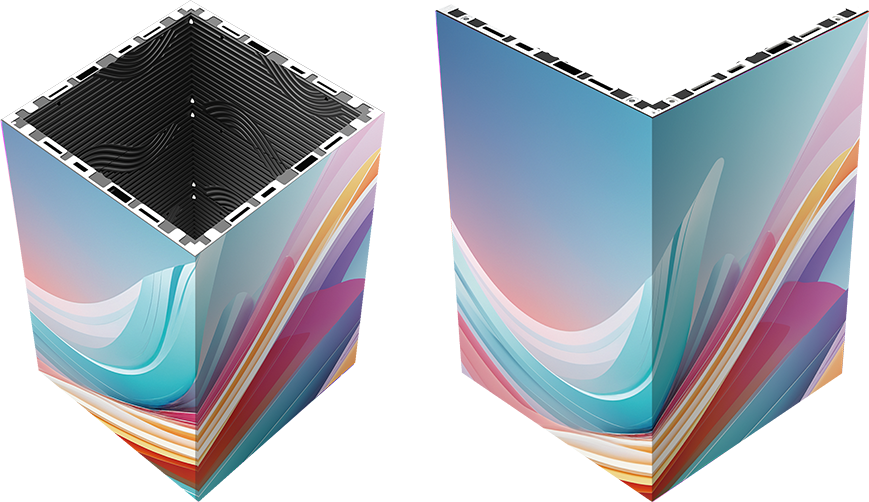

Creative Shapes, Infinite Imagination

Supports right angles, columns, and other geometric arrangements, allowing innovative configurations for striking visual impact

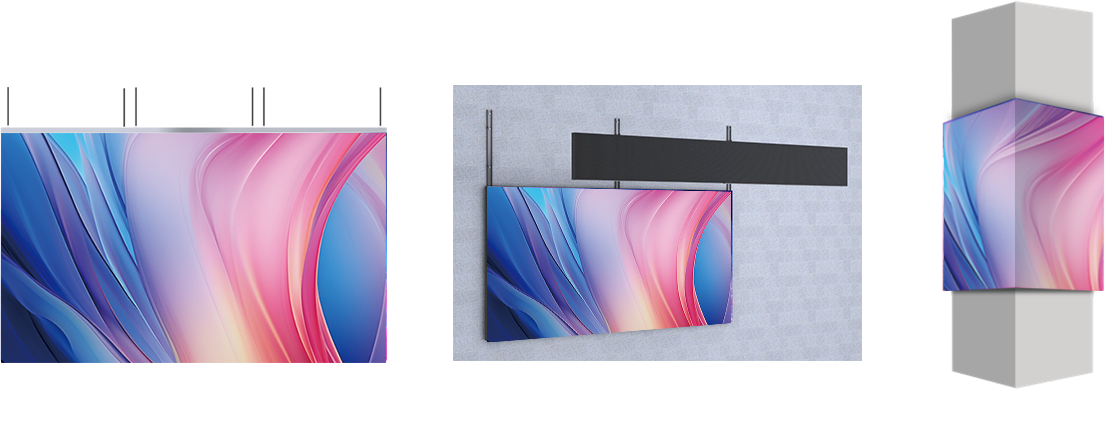

Versatile Installation Options

Supports suspended installation, wall-mounted setups, and column-shaped arrangements, adaptable for a wide range of
en-vironments.

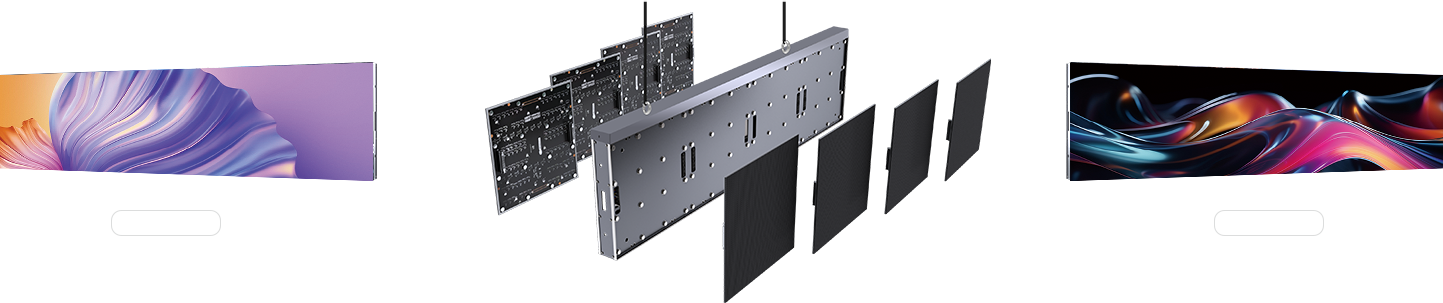

Dual-Sided Display Option

The MS Series can be configured for thin dual-sided displays lonly 54mm), offering lightweight and perfect hanging solutions for
dou-ble-sided viewing.

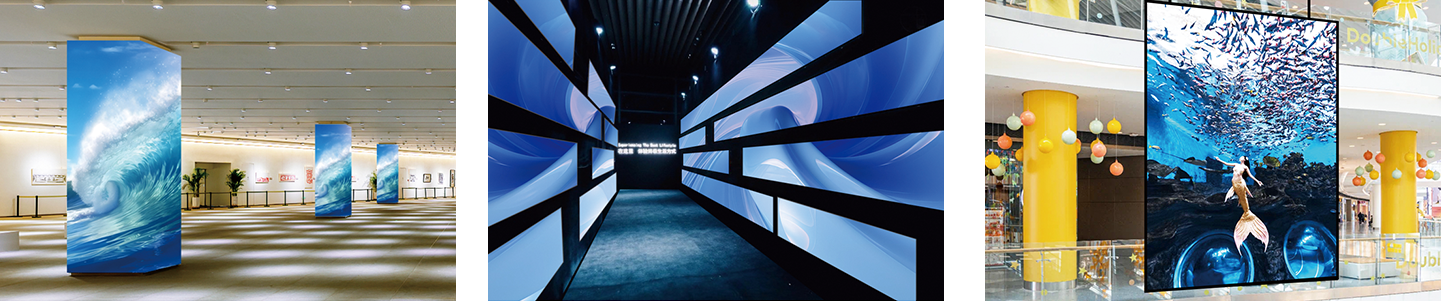

Application Scenarios

ldeal for conference rooms, retail spaces, exhibitions, museums, showrooms, and creative installations, delivering stunning
visual experiences in every setting.

Parameters

Download
Items MS12 MS15 MS19 MS25 MS26 MS29 MS39
Pixel Pitch (mm) 1.25 1.5625 1.95 2.5 2.604 2.976 3.91
LED Type SMD1010 (GOB) SMD1212 (GOB) SMD1515 SMD1515 SMD1515 SMD1515 SMD1515
Pixel Density (pixels/m²) 640,000  409,600  262,144  160,000  147,456  112,896  65,536
Module Resolution (W×H) 200×200 160×160 128×128 100×100 96×96 84×84 64×64
Module Size (W×H) 250×250
Cabinet Size (mm) 500×250×33 / 750×250×33 / 1,000×250×33 / 1,000×500×33
Double-Sided Cabinet Size (mm) 500×250×54 / 750×250×54 / 1000×250×54
Module Arrangement (W×H) Standard Cabinet: 2×1 / 3×1 / 4×1 / 4×2; Double-Sided Cabinet: 2×1 / 3×1 / 4×1
Cabinet Resolution (W×H) 400×200
600×200
800×200
800×400		 320×160
480×160
640×160
640×320		 256×128
384×128
512×128
512×256		 200×100
300×100
400×100
400×200		 192×96
288×96
384×96
384×192		 168×84
252×84
336×84
336×168		 128×64
192×64
256×64
256×128
Double-Sided Cabinet Resolution (W×H) 400×200
600×200
800×200		 320×160
480×160
640×160		 256×128
384×128
512×128		 200×100
300×100
400×100		 192×96
288×96
384×96		 168×84
252×84
336×84		 128×64
192×64
256×64
Maintenance Front
Cabinet Material Standard Cabinet: die-cast aluminum; Double-Sided Cabinet: aluminum profile
Single-Point Brightness Correction Yes
Brightness (nits) 600 600 800 800 800 800 800
Color Temperature (K) 3,200–9,300 (adjustable)
Viewing Angle (H/V) 160°/160°
Brightness/Color Uniformity ≥97%
Contrast Ratio 10,000:1
Frame Rate (Hz) 50/60
Scan Mode 1/50 1/40 1/32 1/25 1/32 1/28 1/16
Grayscale (bit) 14 / 16 (optional)
Refresh Rate (Hz) 3,840
Peak Power Consumption (W/m²) Standard Display: 350; Double-Sided Display: 650
Average Power Consumption (W/m²) 100–200
Protection Level IP31
Input Voltage AC90V–AC264V, 47–63Hz
Operating Environment -20 ℃ ~ 60 ℃, 10% ~ 85% RH
Certifications CCC, CE, RoHS, FCC, CB, TUV, IEC
